Review: Gigabyte GeForce RTX 4070 Ti Super Windforce OC
This is our hands-on review of the Gigabyte GeForce RTX 4070 Ti Super Windforce card.
Last updated
This is our hands-on review of the Gigabyte GeForce RTX 4070 Ti Super Windforce card.
Last updated
The Gigabyte NVIDIA GeForce RTX 4070 Ti Super represents a new step in NVIDIA’s 40-series lineup, delivering high performance tailored for both gaming and creative applications. Built on NVIDIA’s Ada Lovelace architecture, this GPU combines advanced features like Deep Learning Super-Sampling (DLSS) 3.5, real-time ray tracing, and CUDA cores, positioning itself as a high-performance choice for 1440p and even some 4K gaming scenarios. With 16 GB of GDDR6X VRAM, and a 256-bit memory bus width, the 4070 Ti Super is closer to the RTX 4080. Here’s a closer look at how Gigabyte's 4070 Ti Super performs across critical aspects like gaming, power consumption, and more.
The RTX 4070 Ti Super shines as a powerful mid-to-high-end gaming card, ideal for 1440p gaming at high frame rates and even capable of tackling 4K gaming on less demanding titles. Benchmark tests demonstrate impressive frame rates across AAA games and popular eSports titles:
1440p Gaming: This GPU consistently delivers 100+ FPS in games like Cyberpunk 2077, Assassin’s Creed Valhalla, and Shadow of the Tomb Raider at ultra settings with ray tracing enabled. When paired with DLSS 3.5 (Deep Learning Super Sampling), frame rates can climb even higher without sacrificing visual fidelity.
4K Gaming: While primarily targeted for 1440p gaming, the 4070 Ti Super holds its own at 4K, especially in less graphically intensive games or with DLSS enabled. Titles like Horizon: Zero Dawn Remastered and Hogwarts Legacy run smoothly above 60 FPS at 4K, especially with DLSS helping balance quality and performance.
The card is particularly effective when paired with DLSS 3.5 Frame Generation, which generates additional frames using AI. This results in a smoother visual experience and, in some cases, nearly doubles the frame rate in supported games without increasing hardware strain. This makes DLSS one of the most compelling reasons to choose the RTX 4070 Ti Super over previous generations, especially if you’re focused on gaming performance in cutting-edge titles.
In the screenshot below, you can see Horizon: Zero Dawn Remastered running in native 4k at 80fps with most in-game graphical settings set to high or maximum, with DLSS FrameGen (not upscaling) enabled.
The cooling solution in the Gigabyte GeForce RTX 4070 Ti Super combines three Windforce fans, an extended heatsink (13 inches long), and heat pipes to efficiently disperse heat. Here’s a breakdown of its cooling and noise profile:
Fan Noise: During light to moderate loads, the card runs virtually silent thanks to the semi-passive fan mode, which turns off the fans completely under minimal load. Under gaming loads, the fan noise remains manageable, peaking at around 40 dB, which is barely noticeable in typical gaming environments. The maximum fan speed (100%) for this GPU is 3,000 RPM. The sound at maximum speed is noticeable, but still very muffled; there is no sharpness to the sound of the Windforce fans.
Video Playback: While playing back a 4k60 YouTube video in full screen, the GPU fans never turned on. We monitored the fan speed in real-time, during video playback, by using the NVIDIA App. We recommend that you download and install the NVIDIA App to monitor and control your NVIDIA GPU as well.
Furmark Stress Test: While running the Furmark GPU stress test, we observed the maximum fan speed around 1,850 RPMs. While you can hear the fans spin up slightly in a completely quiet room environment, it is barely noticeable, and a very "soft" sound. If you're listening to music, playing games, or engaging in other types of media, you will almost certainly not hear the fans at all.
Cooling Performance: The GPU maintains stable temperatures even during intense gaming sessions, rarely exceeding 75°C under full load. This performance is attributed to Gigabyte’s effective cooling design, which allows the card to sustain high performance without thermal throttling. The three fans also operate independently, allowing for targeted cooling that maximizes airflow over the hottest parts of the card.
Overall, the fan noise is well-controlled, making the RTX 4070 Ti Super suitable for gamers who prioritize a quieter gaming experience.
The RTX 4070 Ti Super is one of the more power-efficient cards in its class, thanks to NVIDIA’s Ada Lovelace architecture. Based on our hands-on testing, it typically draws around 300 watts under full load, which is manageable given its high performance.
Video Playback: While playing back a 4k60 video on YouTube, in full screen, on a 4k monitor, the RTX 4070 Ti Super's GPU clock speed remained static at 210 MHz, and power consumption was sitting at 46 watts.

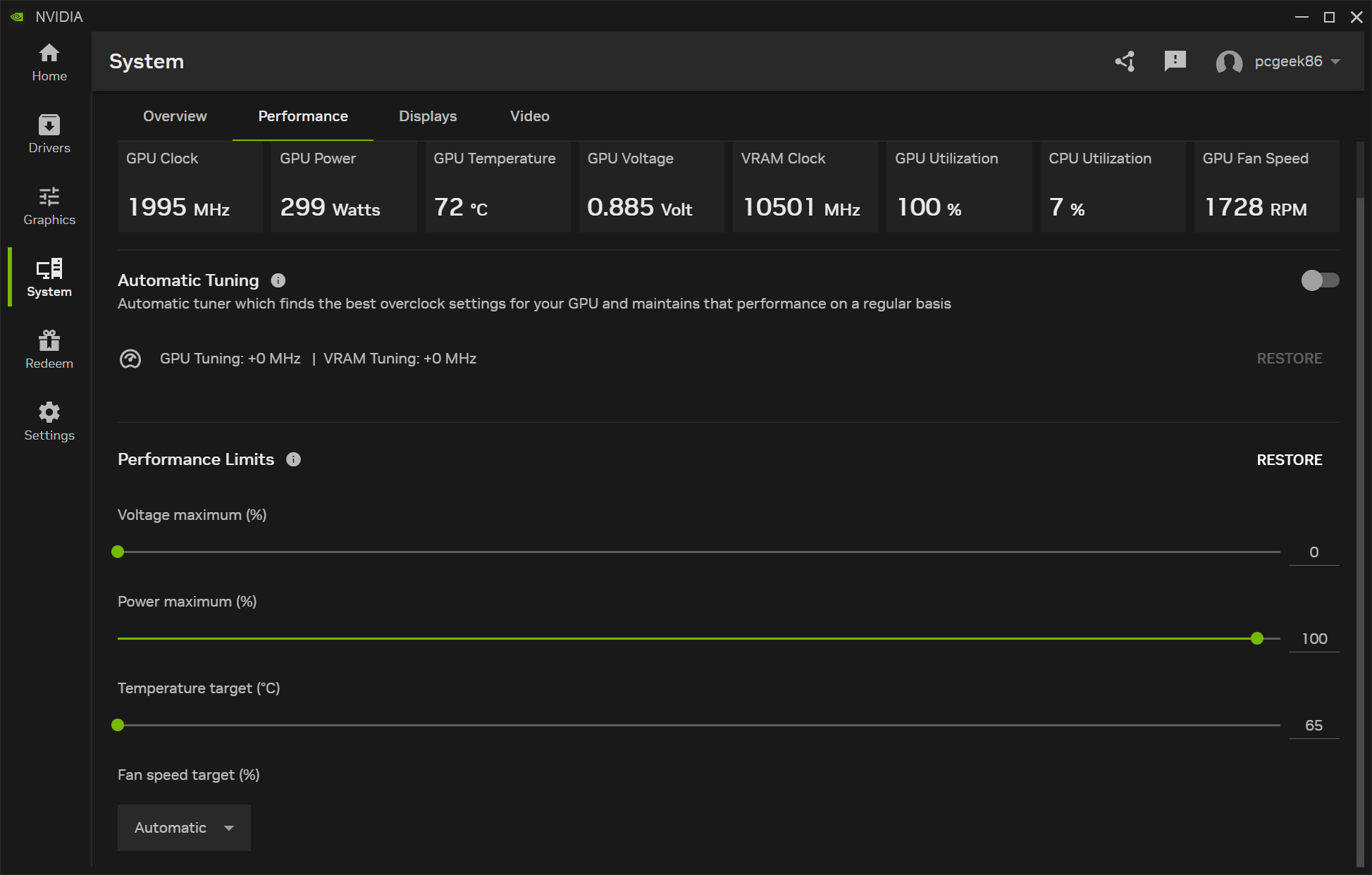

Furmark Stress Test: We run Furmark at a 4k resolution, in windowed mode, to stress test GPUs. The Gigabyte RTX 4070 Ti Super maxed out at 299 watts of power consumption. We didn't notice any anomalous spikes during this stress test either.
Horizon Zero Dawn: While running Horizon Zero Dawn Remastered, we saw GPU utilization at 100% with power consumption sitting around 255 watts. Even though games utilize the GPU heavily, they don't seem to max out power consumption very frequently, like the Furmark stress test does. Of course, this heavily depends on the game, settings, and specific scene that you're in. HZD: Remastered is a graphically intense game however, and includes many scenes with close-up details of organics, along with long-distance views of the beautiful landscape.
Power Requirements: Gigabyte recommends a 750-watt power supply, which is reasonable for most modern builds. This is more than enough power for most systems using AMD or Intel CPUs, with some extra headroom. In practice, the 4070 Ti Super maxes out at 300 watts of consumption on its own. This power efficiency is impressive, especially when compared to previous high-end cards like the RTX 3080, which consume more power while delivering comparable gaming performance.
Efficiency: The card’s power efficiency is noticeable in extended gaming sessions, where it balances performance and power usage. Users who game for extended periods or run creative tasks benefit from the reduced power draw, which translates into less heat generation and lower electricity costs.
We also captured some utilization figures about the RTX 4070 Ti Super while playing Horizon: Zero Dawn Remastered at 4k native resolution (no DLSS upscaling). We had DLSS Frame-Generation enabled to help boost FPS. As you can see from the graphs below, the GPU is utilized near 100% while gaming, and the CPU is mostly idle. GPU temperature hovers around 70 degrees Celsius while the room's ambient temperature is a comfortable 66 degrees Fahrenheit. At 4k gaming, having 16GB of VRAM on the 4070 Ti Super really helped, as VRAM utilization hovered consistently around the 13.6 GB mark. One of the interesting things to note is that GPU power consumption is signifcantly under peak utilization. While running Furmark stress test, the 4070 Ti Super can reach 300 watts of power draw, but Horizon: Zero Dawn Remastered only caused about 250 watts of power draw.
The Gigabyte GeForce RTX 4070 Ti Super isn’t just about raw power; it’s packed with advanced features that make it highly versatile for gaming and creative workflows.
DLSS 3.0 uses AI to upscale lower-resolution images to near-native quality, and the Frame Generation feature generates additional frames to boost FPS. Games that support DLSS 3.0 see substantial performance gains, allowing users to push higher settings without sacrificing smooth gameplay. This makes the RTX 4070 Ti Super ideal for gamers who want to experience high frame rates in graphically intensive games with ray tracing enabled.
The card’s third-generation ray tracing cores enable realistic lighting, shadows, and reflections. The 4070 Ti Super handles ray-traced games smoothly at 1440p, especially with DLSS 3.0, which helps sustain high frame rates even with the most demanding graphical settings. Games like Cyberpunk 2077 and Control showcase impressive realism with ray tracing enabled, demonstrating the visual potential of this card.
With 7680 fourth-generation CUDA cores, the RTX 4070 Ti Super is also well-suited for content creators, developers, and data scientists. CUDA cores accelerate rendering, machine learning, video encoding, and other tasks, significantly reducing processing times for complex projects. This GPU is a strong choice for creators who split their time between gaming and professional development.
For creators, NVIDIA’s Studio Drivers offer optimized performance for creative applications, ensuring stability and enhanced functionality. The Studio Drivers are ideal for professionals who rely on creative software and want maximum stability and performance in applications like Autodesk, Adobe Suite, and Unreal Engine.
RTX IO: RTX IO offloads decompression tasks from the CPU to the GPU, speeding up loading times in compatible games and reducing CPU load.
Resizable BAR: The card supports Resizable BAR, which improves data flow between the CPU and GPU, particularly beneficial in CPU-bound gaming scenarios. This feature was initially released with the RTX 3000 series GPUs, and continues to be available in the 4000 series. You can check to see if Resizable BAR is enabled in the NVIDIA Control Panel. Simply click on System Information in the bottom-left, and it will pop up a window that shows you the feature status. Check out the screenshot below for an example.
G-Sync Compatibility: As with other RTX cards, the 4070 Ti Super is fully compatible with G-Sync monitors, reducing screen tearing and improving overall gaming smoothness. We suggest an entry-level G-Sync monitor like the KTC 27" 4k 144hz HDR LCD monitor, to get a smooth gaming experience. If you have more budget for a monitor, you might consider getting a 4k OLED monitor instead. G-Sync makes a noticeable difference in smoothness during gaming, and even general desktop usage.
Pros:
Excellent 1440p and capable 4K gaming performance
Quiet fan operation with effective cooling
DLSS 3.5 upscaling and Frame Generation for boosted performance
Efficient power usage for high-end performance, with lower operating temperatures
Ideal for creators with CUDA cores and Studio Driver support
Cons:
High initial investment compared to previous-gen GPUs
Large physical size and heavy weight; may need anti-sag bracket (included in box)
Limited 4K performance in some games, with maxed settings, without DLSS upscaling
The Gigabyte GeForce RTX 4070 Ti Super is a robust choice for gamers and creators seeking a high-performance GPU that balances power efficiency and advanced features. Its impressive gaming performance, quiet operation, and efficiency make it a great choice for those looking to game at 1440p or even 4K with DLSS 3.5 enabled. Advanced features like Frame Generation, ray tracing, and CUDA cores provide strong support for both gamers and professional users, making it a versatile and future-proof investment.
For those wanting top-tier 1440p gaming and the flexibility to dabble in 4K, as well as high productivity for creative applications, the RTX 4070 Ti Super stands out as one of the best in its class.
